Server Side

Server Side Implementation

The server side needs to handle 4 major tasks:

1. Generate QR String
2. Webhook to receive authorization request
3. Change user status
4. Verify user status

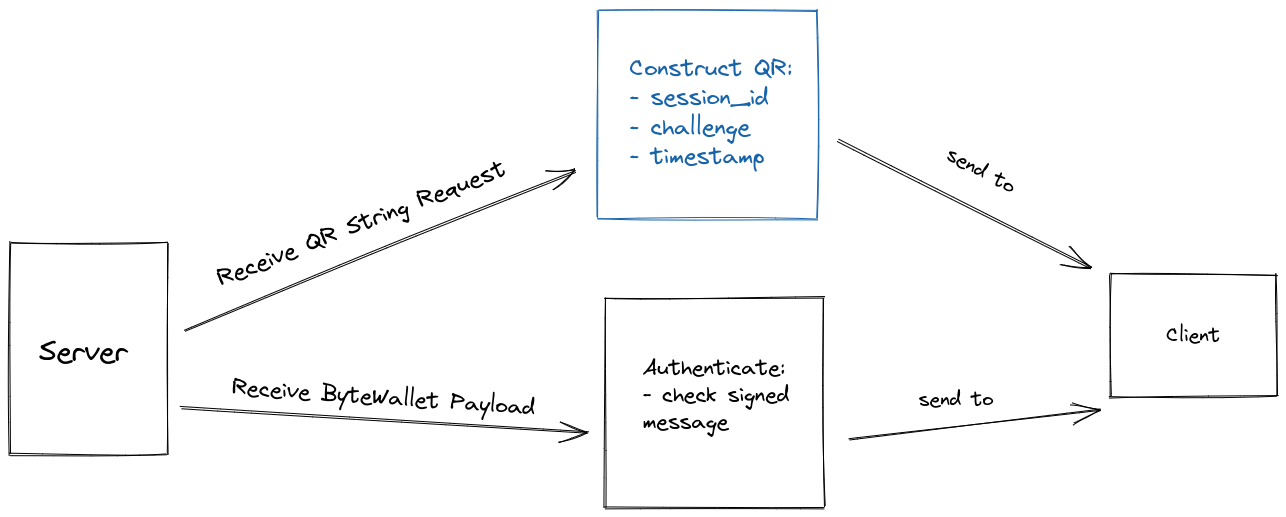

How it Works

The server generates a QR code that the client presents for the user to scan with ByteVault. Once scanned successfully, the server receives the response at its webhook route.

The response contains a signed version of the QR code (signed by the user’s wallet’s private key). If the signed message corresponds to the public key submitted, the user is authenticated successfully.

Display Client

Kiosks and/or Web Interface displaying QR code

Scan Client

ByteVault app

Session Table (Optional)

We use this table to store sessions generated when a user loads the login page. The webhook function checks past challenges to ensure the request is recent.

Tip

Security feature: challenge phrase valid for 30 seconds to 2 minutes to prevent snapshot of QR

There are many different session systems available, so feel free to use your own.

create_bf_fast_sessions.sql

CREATE TABLE `bf_fast_sessions` (
    `id` INT(10) NOT NULL AUTO_INCREMENT,
    `sid` VARCHAR(150) NULL DEFAULT NULL,
    `v` TEXT(65535) NULL DEFAULT NULL,
    `s` VARCHAR(50) NULL DEFAULT NULL,
    PRIMARY KEY (`id`) USING BTREE,
    UNIQUE INDEX `sid` (`sid`) USING BTREE
)
ENGINE=InnoDB
AUTO_INCREMENT=1;

Dependencies

The only server-side dependency is an implementation of Bitcoin ECDSA functions to verify digital signatures.

PHP

The following libraries handle the math needed for ECDSA key pair handling:

sudo apt-get install php8.x-gmp
sudo apt-get install php8.x-bcmath

Install bitcoin signing package using composer:

composer require bitcoin-php/bitcoin-ecdsa

use BitcoinPHP\BitcoinECDSA\BitcoinECDSA;

Node.js

npm install bitcoinjs-lib
npm install bitcoinjs-message

Python

pip install bitcoinlib

---

1. Generate QR Code

The QR code is the base of the authentication system. It must contain the webhook URL, session_id, challenge, and timestamp.

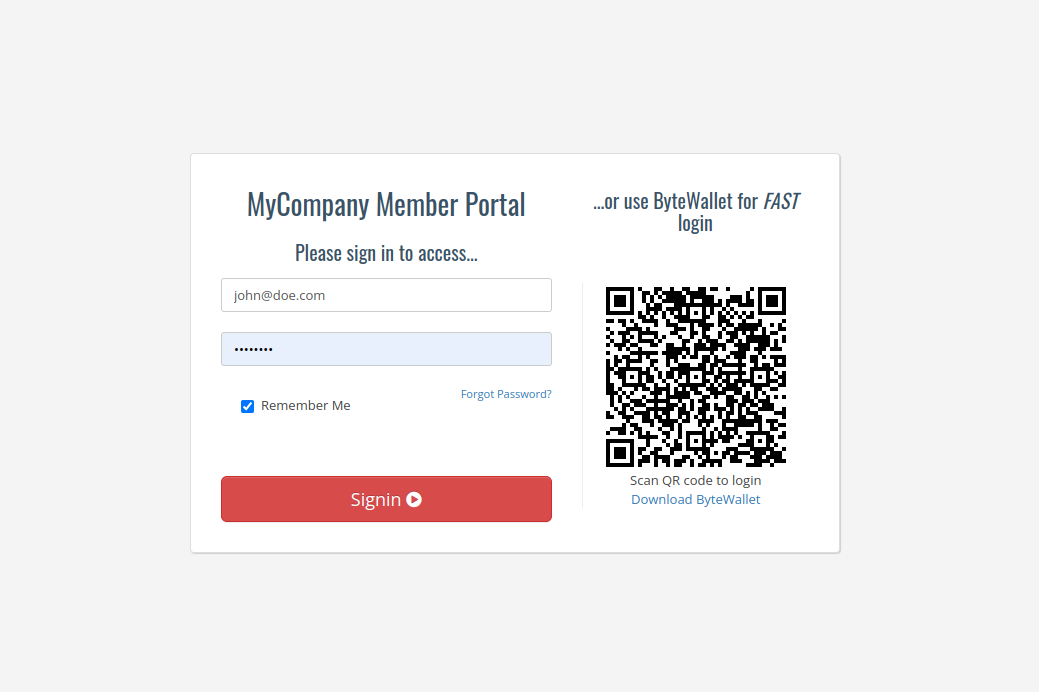

This QR Code is generated server-side and displayed on the client side - typically on a login page:

Parameters

Request

• session_id: string - Unique token assigned to user’s session
• challenge: string - Mutual key phrase shared between server and client
• timestamp: string - Hex encoded UTC-timestamp of QR generation

Response

{
  "qr": "https://my.website.com/api/fastbyte?sid=-ioAzu3w6AJaZ_uu7SnT7HTvJ6ddtFNQ_1660924354&c=xGOxY1TYHK8X0tiDuXl9XPDS3stIZzok_1660924504&t=62ffb258",
  "sid": "-ioAzu3w6AJaZ_uu7SnT7HTvJ6ddtFNQ_1660924354",
  "status": 0
}

Example

PHP (Yii2)

actionGetqrcode.php

/**
 * QR Code generation
 *
 * Your login page javascript calls this QR-code-string generating API function
 * every ~30 seconds to generate a new challenge for your webhook URL.
 *
 * GET /api/getqrcode?sid=x
 * @param string $sid - your session token
 * @return echo qr-code string
 */
public function actionGetqrcode()
{
    $status = 0;
    if(Yii::$app->user->isGuest)
    {
        $bf_session = new Fast;
        $session_string = Yii::$app->getRequest()->getQueryParam('sid');

        if($session_string == 'null' || $session_string == "undefined"
        || empty($session_string) || is_null($session_string)){
            $session_string = Yii::$app->security->generateRandomString()
            . '_' . time();
            $bf_session->sid = $session_string;
            $bf_session->save();
        } else {
            $bf_session = Fast::find()->where(['sid' => $session_string])->one();
        }

        $challenge = Yii::$app->security->generateRandomString() . '_' . time();

        $clist = $bf_session->v;
        if(!empty($clist))
            $clist .= "," . $challenge;
        else
            $clist = $challenge;

        // Keep only last 4 challenges (2 minutes worth at 30 sec intervals)
        $cs = explode(",", $clist);
        if(count($cs) > 4) {
            $a = array_slice($cs, -4);
            $clist = implode(",", $a);
        }
        $bf_session->v = $clist;
        $bf_session->save();

        $qr_image = "https://portal.bytefederal.com/api/fastbyte?sid="
        . $session_string . "&c=" . $challenge . "&t=" . dechex(time());
    } else {
        $status = 1;
    }

    $json = json_encode(array("qr" => $qr_image, "sid" => $session_string, "status" => $status));
    Yii::$app->response->headers->add('Content-Type', 'application/json');
    Yii::$app->response->format = \yii\web\Response::FORMAT_RAW;
    echo $json;
}

Laravel

Coming soon…

Node.js

Coming soon…

Python

Coming soon…

Note

Make sure to store a buffer with the last few valid client/server challenges. This accounts for any lag time between client and server.

---

2. Webhook Request

This function receives and authenticates the signed message from ByteVault. Once the user scans the QR code, a request is sent to your endpoint for signature verification.

Parameters

Request

• msg: string - The QR code URL with query parameters
  • session_id: string - Unique session token
  • challenge: string - Mutual key phrase
  • timestamp: string - UTC-timestamp
• pubk: string - User’s provided public key
• sig: string - Signed message with user’s private key
• addr: string - User’s public address

Response

• response: string - Success/error message

Example

PHP (Yii2)

actionFastByte.php

/**
 * Fast Byte Webhook
 *
 * Receives signed message from ByteVault, verifies challenge and signature.
 *
 * GET /api/fastbyte?sid=x&c=y&t=z
 * POST: pubk, msg, sig, addr
 */
public function actionFastbyte()
{
    try {
        $challenge = Yii::$app->getRequest()->getQueryParam('c');
        $session_string = Yii::$app->getRequest()->getQueryParam('sid');
        $pubk = Yii::$app->request->post('pubk');
        $msg  = Yii::$app->request->post('msg');
        $sig  = Yii::$app->request->post('sig');
        $address = Yii::$app->request->post('addr');

        // Handle raw JSON body
        if(empty($msg)) {
            $j = json_decode(Yii::$app->request->getRawBody());
            $msg = $j->data->msg;
            $sig = $j->data->sig;
            $address = $j->data->addr;
        }

        $bf_session = Fast::find()->where(['sid' => $session_string])->one();
        $clist = $bf_session->v;
        $all_challenges = explode(",", $clist);

        if (in_array($challenge, $all_challenges)) {
            echo "found challenge...";
            $bitcoinECDSA = new BitcoinECDSA();

            if($bitcoinECDSA->checkSignatureForMessage($address, $sig, $msg)) {
                $bf_session->s = $address;
                $bf_session->save();
                echo "User has been successfully authenticated";
            } else {
                echo "Couldn't verify message";
            }
        } else {
            echo "no challenge found, sorry";
        }
    } catch (Exception $e) {
        echo "Error: " . $e;
    }
}

Laravel

Coming soon…

Node.js

Coming soon…

Python

Coming soon…

Caution

Caveat: The webhook will receive requests from a different IP than where the session was initiated (user’s desktop vs. their phone with ByteVault on cellular). Make sure cross-site scripting prevention doesn’t block the incoming request.

Tip

If you get 500 (Internal Server Errors) on posting to the webhook, check:

• Your Bitcoin ECDSA library is properly installed
• Your webhook receives address/msg/signature values
• Your user lookup functions execute properly

---

3. Polling Authentication Status

This function checks if the user has been authenticated via the webhook. If the public address exists for this session_id, the user can be redirected to their restricted page.

Parameters

Request

• session_id: string - Unique session token

Response

{
  "sid": "-ioAzu3w6AJaZ_uu7SnT7HTvJ6ddtFNQ_1660924354",
  "status": 0
}

• status: 0 - Session still unauthenticated
• status: 1 - Successful authentication detected

Example

PHP (Yii2)

actionCheckfast.php

/**
 * Polling authentication status
 *
 * Returns status change when authentication succeeds.
 *
 * GET /api/checkfast?sid=x
 */
public function actionCheckfast()
{
    try {
        $status = 0;
        $session_string = Yii::$app->getRequest()->getQueryParam('sid');
        $bf_session = Fast::find()->where(['sid' => $session_string])->one();

        if(!is_null($bf_session->s) && !empty($bf_session->s))
            $status = 1;

        $json = json_encode(array("sid" => $session_string, "status" => $status));
        Yii::$app->response->headers->add('Content-Type', 'application/json');
        Yii::$app->response->format = \yii\web\Response::FORMAT_RAW;
        echo $json;
    } catch (Exception $e) {
        echo "Error: " . $e;
    }
}

Laravel

Coming soon…

Node.js

Coming soon…

Python

Coming soon…

---

4. Verify Status & Login

The final piece grants authentication and redirects to the dashboard. Lookup the session_id, verify the public key matches, and grant access.

Example

PHP (Yii2)

actionDashboard.php

/**
 * Loading a Dashboard
 *
 * Check session's authentication status and log the user in.
 */
public function actionDashboard()
{
    try {
        $this->layout = 'dashboard';
        $session_string = Yii::$app->getRequest()->getQueryParam('sid');

        if(!empty($session_string)) {
            $bf_session = Fast::find()->where(['sid' => $session_string])->one();

            if(!is_null($bf_session->s) && !empty($bf_session->s)) {
                $identity = User::findOne(['pubk' => $bf_session->s]);

                if (Yii::$app->user->login($identity)) {
                    $data['body'] = "Logged in successfully!";
                    return $this->render('dashboard', $data);
                }
            }
        }
    } catch (Exception $e) {
        echo "Error: " . $e;
    }
}

Laravel

Coming soon…

Node.js

Coming soon…

Python

Coming soon…

---

What’s Next?

Congratulations! Your user base can now authenticate with ByteVault.

• Payments - Offer crypto payment options (your users have a wallet!)
• Rewards - Send rewards and bonus points to their wallet
• Currency Exchange - Users can convert crypto to fiat and vice versa
• Expand - Add Byte Fast Auth to other pages
• Minimalist Services - Create services that solely use Fast Auth without user metadata
